About backhoe loader buckets

 Backhoe loaders can be utilized in various fields, such as: filling and excavation of roadbed works, cement concrete yard, aggregate/loading of asphalt mixture and other engineering operations. Of course, they can also be used for pushing soil, scraping the ground, pulling other machinery and other related operations. Backhoe loaders are mainly used in: mining, shoveling, transportation and other operations of construction machinery. With high efficiency, fast working speed, lightweight operation and good maneuverability, it has become a major type of earthwork construction machine in engineering construction.

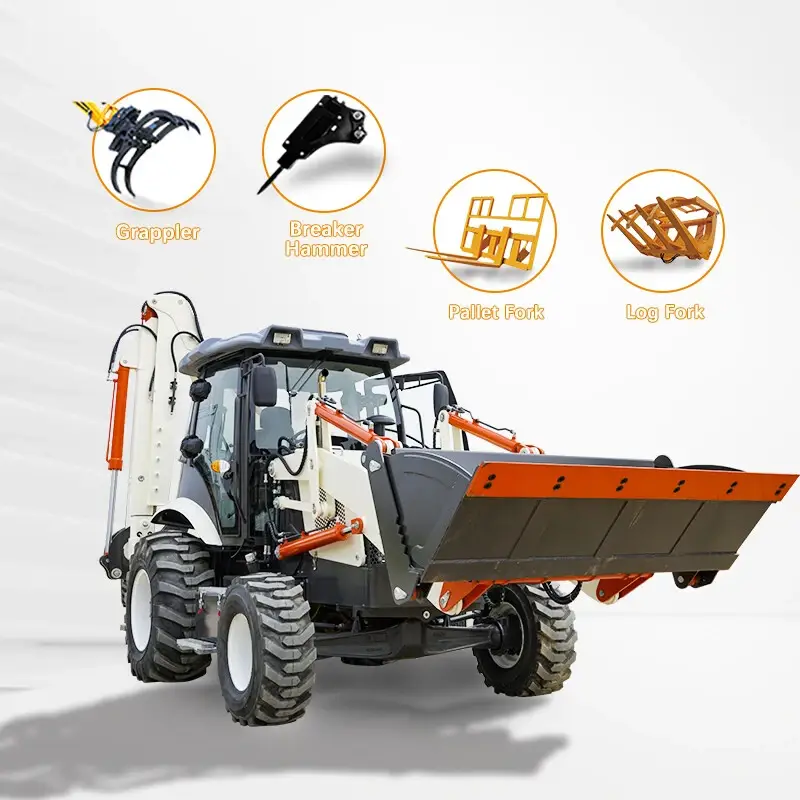

Among them, the bucket is the common configuration of the backhoe loaders, and its selection is directly related to the use of the efficiency of the situation. Backhoe loaders can be configured with different buckets to accomplish different types of tasks.Side unloading bucket: complete the forward and side operation, according to the actual requirements of the field operation. Different side discharging can be realized by adjusting the side discharging cylinder; the secondary blade and the side plate of the bucket body are made of high wear-resistant and high-strength materials, which are adapted to the shoveling work of rocks and other dense materials.

Flat-edged rock bucket: rock shoveling, transferring and digging of primary soil after mine breakage. The main cutting edge is flat and straight, and it has high wear-resistant sub-cutting edge and bucket teeth. The bucket is characterized by high wear-resistant and high strength after analyzing and verifying the actual working conditions.

Sub-blade bucket: the high wear-resistant sub-blade plate bolted to the bottom of the main blade plate is utilized for replacement; it can slow down the wear and tear of the main blade plate to a greater extent, which not only improves the working efficiency of the two-end busy at the time of work, but also prolongs the service life of the bucket.

When the bucket cylinder is locked and the arm cylinder is lifting/falling, the connecting rod mechanism can make the bucket move up and down flatly or nearly flatly, so as to prevent the bucket from tilting and scattering materials; when the arm is in any position and the bucket rotates around the hinge point of the arm for unloading, the angle of the bucket tilting is ≥45°, and after unloading, the bucket can be automatically leveled off when the arm is descending.

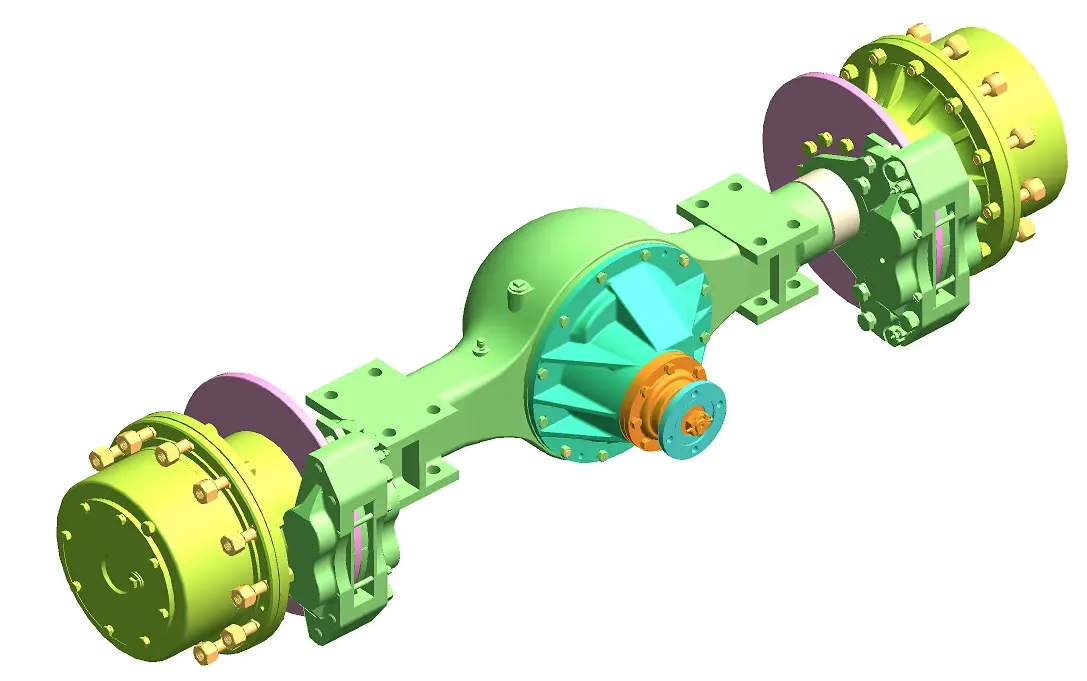

Drive Axle For Wheel Loader

 Drive axle has two grades reduction structure. It is widely applied to wheel loader and other similar wheel construction machines. It has rational design structure, reliable use performance, long duration of life. It adopts caliper disc brake by hydraulic braking. Braking moment is large and braking is stable and reliable.

The drive axle has many kinds of connection dimensions which meet the different requirements of the consumers.
The Structural Characteristics and Working Principle of  Drive Axle:

Drive axle is two grades reduction transmission device. The first grade device adopts spiral bevel gear to transmit. Drive axle bears large input torque and has capability of high transmission efficiency and stable working. The second grade device adopts planetary reduction transmission structure (NGW) type. Rigidity of whole movement of drive axle is well and output speed is smooth. Between two grades device, we adopt full-floating axle shaft to connect and transmit power. The structure has overcome that axle housing in the course of working distortion brings the influence to axle shaft transmission.

Power torque of vehicle is inputted by drive shaft from input flange of drive axle. Final drive changes rotary direction to drive driven spiral bevel gear and differential case to rotate after it does reduction and differential. Differential case drives cross pin and planet bevel gears to transmit power to axle shaft gears. Axle shaft gears transmit power to two sides wheel-end reduction by axle shafts, finally transmit power to planet carriers after wheel-end reduction do reduction, thereby drive wheels to roll ahead.

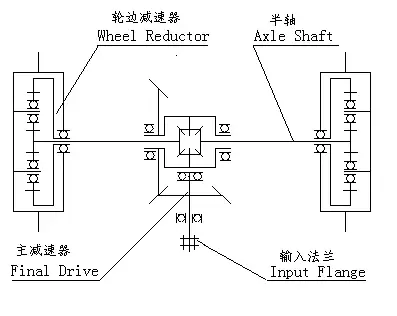

Transmission route of drive axle as follows:

Power torque of vehicle —— input flange —— final drive —— differential —— axle shafts —— wheel-end reduction —— wheels.

When braking, high pressure braking fluid in braking line enters hydraulic cavities behind the pistons through brake oil inlet. It drives two sides pistons to push braking plates towards the middle. Thereby braking plates vice the rotating braking disc mounted on hub to make it bring friction moment and achieve the goal of braking.

Working route: hydraulic of cylinder —— pistons move —— push braking plates —— vice braking disc.

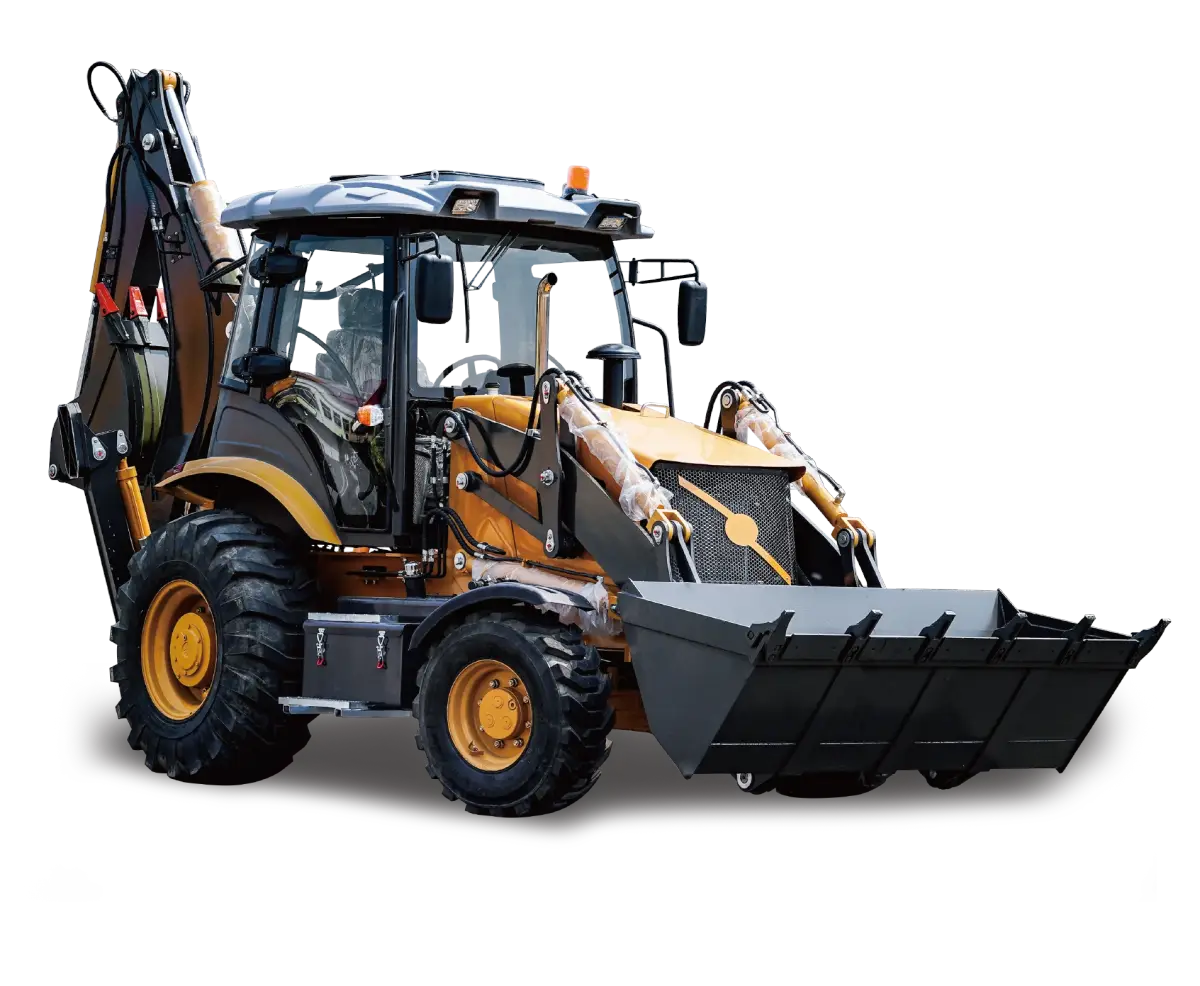

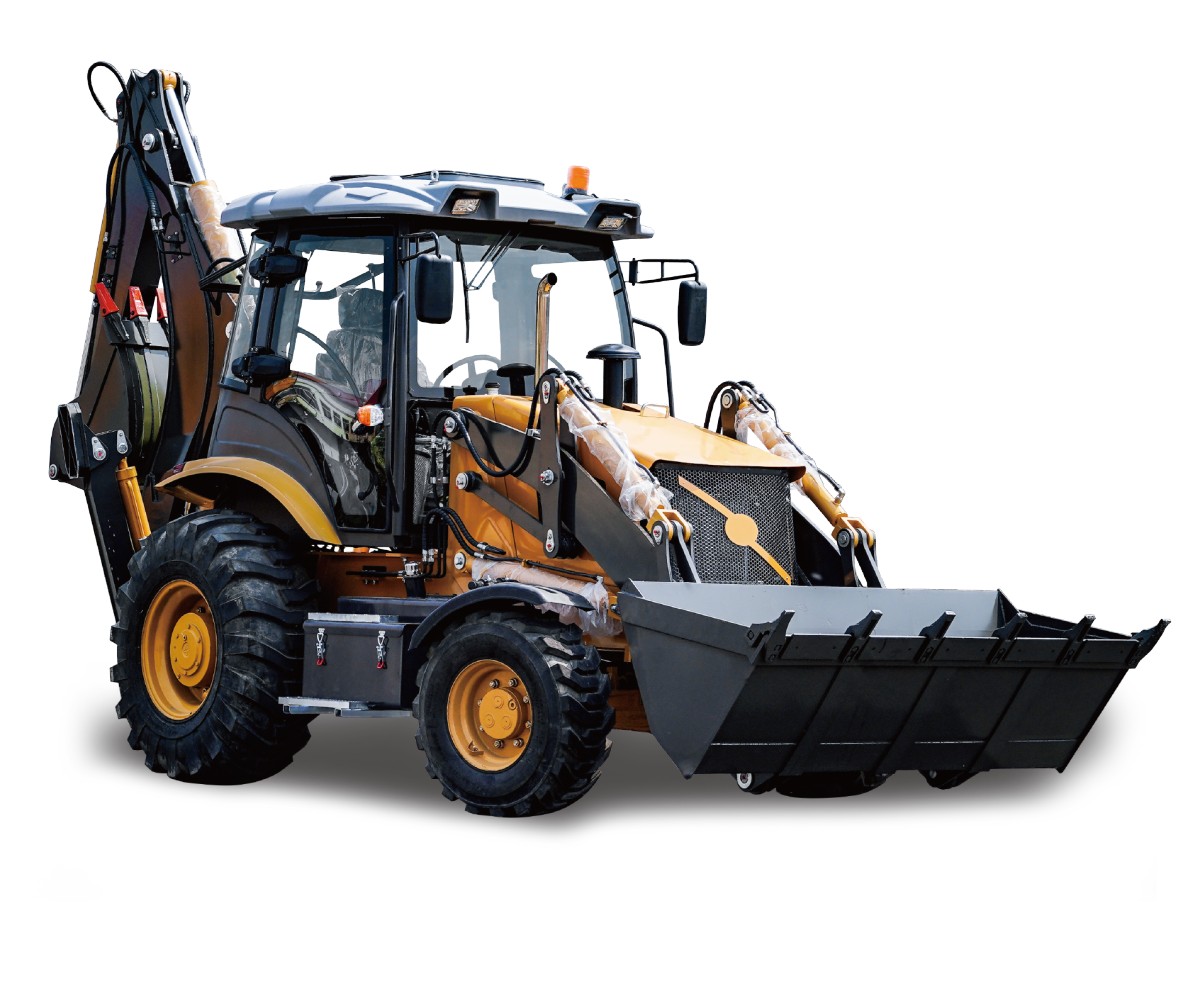

What Is a Backhoe Loader?

 The Backhoe Loader is a multifunctional construction machine that combines the functions of a front-end loader and a back-end excavator. It can quickly switch between the two modes of operation on the same piece of equipment, and it is capable of accomplishing material loading and unloading, excavation and transportation.

The backhoe loader is equipped with a high-quality hydraulic system to ensure smooth operation and strong digging power. Meanwhile, fuel efficiency is optimized to reduce operating costs. In addition, every Luyu backhoe loader undergoes rigorous quality testing to ensure stable operation under severe working conditions.

Key advantages of LUYU Machinery backhoe loaders

1. A wide range of models are available to meet a variety of working conditions. Ruyu's backhoe loaders are categorized into two types: equal-wheeled and large and small-wheeled. Backhoe loaders with different sizes of front and rear wheels have a smaller turning radius, are more flexible in operation, and are more suitable for extremely complex working conditions.

2. LUYU backhoe loaders are equipped with high-performance engines, such as Yuchai, Yunnei and other international brands. It can provide excellent power and ensure stability even in harsh environment.

2.Precision-designed hydraulic system improves the accuracy and efficiency of operation.

3. Integrating excavation, loading and material handling, these machines are versatile and cost-effective.

4.Manufactured with Chinese high strength steel and wear-resistant components to maintain optimum performance over long periods of operation.

5.Backhoe excavators are equipped with ergonomic cabs for improved comfort, control and safety.
