Phosphorus Extraction Process: From Phosphate Rock to Fertilizer

 Phosphorus is one of the most important nutrients in agriculture, playing a vital role in fertilizer production. Since phosphate rock is a non-renewable resource, the extraction process must balance efficiency with sustainability.

The journey begins with beneficiation, where crushing, washing, and flotation separate phosphate-bearing minerals from impurities. Next comes acid digestion, where sulfuric acid transforms phosphate rock into phosphoric acid — the key ingredient for fertilizers.

Two major methods are used: the wet process (most common, involving digesters and slurry treatment) and the thermal process (more energy-intensive but producing high-purity phosphorus).

However, extraction also creates by-products like phosphogypsum, and the process consumes significant energy. Improving efficiency and managing waste responsibly are essential to ensuring phosphorus remains available for future generations.

From Rock to Table: How Phosphorus Supports Global Food Security

 Every harvest, every green field, and every plate of food we enjoy is connected to a single element: phosphorus. Without it, modern agriculture would struggle to feed billions. But phosphorus doesn’t just appear — it’s carefully extracted from phosphate rock through a complex and resource-intensive process.

First, the rock undergoes beneficiation, a series of steps like crushing, washing, and flotation that separate valuable phosphate minerals from waste. Then, in the acid digestion stage, sulfuric acid reacts with the rock to create phosphoric acid — the foundation of fertilizers. Along the way, by-products like phosphogypsum emerge, and industries must manage them responsibly.

There are two paths to phosphoric acid: the widely used wet process and the energy-heavy thermal process. Each method has strengths and trade-offs, but both highlight how resource management is critical for sustainability.

Phosphorus extraction is more than just chemistry — it’s about ensuring food security for generations to come. 🌱🌍

👉 Read the full article on my blog to explore how science and sustainability intersect in phosphorus production.

Peripheral drive thickeners offer several important benefits

 In today’s industries, efficiency and sustainability go hand in hand. One piece of equipment that embodies this balance is the peripheral drive thickener. Widely used in mineral processing, wastewater treatment, and chemical production, this equipment plays a critical role in separating solids from liquids, improving water recovery, and ensuring that downstream processes run smoothly.

Unlike center drive thickeners, peripheral drive models feature a peripheral transmission system that allows them to handle large-scale operations with greater reliability. This design makes them especially suitable for industries that process high volumes of slurry on a daily basis.

🔎 How It Works

Peripheral drive thickeners operate on the principle of gravity settling. Solid particles in the slurry gradually sink to the bottom, while clarified liquid rises to the surface and flows out through the overflow. The process can be broken down into several key steps:

1. Feed Introduction – The slurry is introduced into the thickener through a central feed well. Flocculants are often added here to encourage the fine particles to form larger flocs, which settle faster.

2. Flocculation – These chemical agents play a vital role in boosting efficiency, helping to create dense, fast-settling particles.

3. Settling/Precipitation – As the slurry flows outward, gravity pulls the solids down to the bottom, forming a compact sludge layer, while clean water moves upward.

4. Rake Mechanism – Driven by a motor on the periphery, rake arms gently move the settled sludge toward the discharge point. This prevents compaction and ensures steady sludge removal.

5. Clarified Overflow – The clear liquid flows over the peripheral weir into a collection channel. Depending on the application, this water can be reused or safely discharged.

6. Sludge Discharge – Finally, the concentrated underflow sludge is discharged and either processed further or disposed of according to industry needs.

⚙️ Key Advantages

Peripheral drive thickeners offer several important benefits:

• High Throughput – They can process large slurry volumes, making them ideal for high-capacity operations.

• Efficient Separation – With the help of flocculants and an effective rake system, they produce clearer overflow water and denser sludge.

• Low Operating Costs – The energy-efficient design requires minimal maintenance, reducing long-term costs.

• Durability – Built with robust materials, these thickeners withstand the harsh conditions of mining and chemical plants.

• Versatility – They are successfully applied across ore processing, wastewater treatment, and chemical production.

🌍 Applications Across Industries

• Ore Dressing – Concentrates ore and reduces excess water, boosting downstream efficiency.

• Wastewater Treatment – Clarifies water by removing suspended solids, improving effluent quality.

• Chemical Processing – Separates solids from liquids in chemical reactions and production lines.

✅ Why They Matter

Peripheral drive thickeners are more than just equipment — they are enablers of sustainable, cost-effective operations. By efficiently recovering water and concentrating solids, they help industries conserve resources, reduce waste, and optimize overall performance.

As industries face increasing demands for productivity and sustainability, technologies like the peripheral drive thickener will remain at the heart of modern mineral processing and wastewater treatment strategies.

👉 Check out my full article on the blog to explore in detail how this equipment works, its industrial importance, and how it continues to shape smarter processing solutions for the future.

Peripheral drive thickener

 Peripheral drive thickeners are vital equipment in mineral processing and wastewater treatment, designed to increase solids concentration by removing excess water. Unlike center drive thickeners, they use a peripheral transmission system, making them especially effective for large-scale operations.

Here’s how they work:

✔️ Slurry is introduced into the thickener and treated with flocculants for faster settling.

✔️ Solids settle under gravity, while clarified water flows to the overflow.

✔️ A slow-moving rake mechanism pushes sludge to the discharge point, preventing compaction.

✔️ Clear water is recycled, and concentrated sludge is discharged for further use.

Why they matter:

– High throughput for large operations

– Efficient solid-liquid separation

– Low operating costs & durable design

– Versatile use in mining, wastewater, and chemical industries

Whether it’s producing clearer water or improving mineral processing efficiency, peripheral drive thickeners are an indispensable part of modern industry.

How to Choose the Right Ball Mill for Your Concentrator: A Data-Driven Selection Guide​

For metal concentrator managers, selecting between an overflow ball mill and a grid-type ball mill is not a matter of "which is better," but "which is more suitable." The right choice depends on a comprehensive analysis of grinding fineness requirements, production efficiency goals, and long-term operational costs—all of which can be quantified through specific data and scenarios.​

The first and most critical factor is grinding fineness. This indicator directly determines the mill type: if the subsequent process (such as flotation or leaching) requires fine-grained ore (fineness <0.2mm), the overflow ball mill is the clear choice. For example, in a copper concentrator, flotation requires copper sulfide ore particles to be ground to 0.074-0.15mm to ensure that copper minerals are fully exposed and can react with flotation reagents. In this case, the overflow mill’s ability to stably control fineness below 0.2mm and its low risk of producing overly coarse particles (which would reduce flotation recovery) make it irreplaceable. Conversely, if the task is coarse grinding (fineness >0.2mm) as the first stage of two-stage continuous grinding, the grid-type mill is superior. Take an iron ore concentrator as an example: the first-stage grinding needs to reduce ore particles from 20-30mm to 0.3-0.5mm (greater than 0.2mm) for subsequent separation by magnetic separators. The grid-type mill’s forced discharge ensures that these coarse particles are quickly discharged, avoiding over-grinding and improving the overall efficiency of the two-stage grinding process.​

The second factor is production efficiency requirements. If the concentrator has a high throughput target (e.g., processing 5,000 tons of ore per day), the grid-type mill’s 10%-25% higher productivity becomes a key advantage. Let’s calculate: suppose an overflow mill with a diameter of 3.2m and length of 4.5m has a daily output of 800 tons when processing iron ore. A grid-type mill of the same specifications can produce 880-1,000 tons per day—this 80-200 ton increase can directly help the concentrator meet its production targets without increasing the number of mills. However, if the concentrator’s throughput requirement is low (e.g., 200 tons per day) and the priority is to reduce maintenance costs, the overflow mill is more suitable. Its simple structure means that maintenance costs (such as replacing worn parts and labor) are 20%-30% lower than those of the grid-type mill, reducing long-term operational burdens.​

The third factor is energy consumption and cost balance. While the grid-type mill has higher productivity, it also consumes more power—usually 15%-20% more than the overflow mill of the same specifications. For a concentrator with high electricity costs (e.g.,0.15perkWh),thisdifferencecanaddupsignificantly.Forexample,a3.2m×4.5mgrid−typemillconsumesabout280kWhperhour,whileanoverflowmillofthesamesizeconsumesabout230kWhperhour.Overayearof3,000operatinghours,thegrid−typemillwouldincuranadditional

22,500 in electricity costs. Therefore, if the concentrator’s profit margin is narrow, the overflow mill’s lower energy consumption may be more cost-effective, even if its productivity is slightly lower.​

Finally, process matching must be considered. In a closed-circuit grinding process (where ground ore is classified by a hydrocyclone, and coarse particles are returned to the mill for regrinding), the combined-type ore feeder of the overflow mill (which handles both coarse-grained feeding and backfill processing) is more compatible. In an open-circuit grinding process (where ore is ground once without classification), the grid-type mill’s forced discharge and high productivity make it a better fit.​

By integrating these four factors—grinding fineness, production efficiency, energy cost, and process matching—concentrator managers can make a data-driven choice that maximizes grinding efficiency and minimizes operational costs.

Performance Comparison of Overflow and Grid-Type Ball Mills: How Discharge Methods Shape Grinding Efficiency

For metal concentrators, grinding efficiency directly impacts the entire mineral processing chain—and the performance of ball mills, the core grinding equipment, is largely determined by their discharge methods. Overflow ball mills (with free overflow discharge) and grid-type ball mills (with low-liquid-level forced discharge) exhibit distinct performance characteristics, making them suitable for different grinding scenarios.​

The overflow ball mill’s performance is closely tied to its "free overflow" discharge. During operation, the pulp level in the cylinder is relatively high—this high level ensures that ore particles are fully in contact with steel balls, laying the foundation for fine grinding. However, the high pulp level also leads to two notable traits: first, ore discharge relies on self-flow, meaning that ore particles that have already reached the required fineness may remain in the cylinder and be ground repeatedly, causing "over-grinding." Over-grinding not only wastes energy but also produces excessive fine particles that are difficult to recover in subsequent processes (such as flotation), reducing overall mineral recovery. Second, the high pulp level increases the resistance encountered by steel balls when they fall, weakening the impact and grinding effect on ore particles, resulting in slightly lower productivity compared to grid-type mills.​

Despite these limitations, the overflow ball mill has irreplaceable advantages for fine grinding. Its simple structure (no complex grid components) makes operation and maintenance extremely convenient—workers only need to regularly check the wear of the cylinder lining and the lubrication of main bearings, reducing downtime. More importantly, it can stably produce ore particles with a fineness of less than 0.2mm, which is critical for subsequent processes like flotation. Flotation requires ore particles to be fine enough to expose mineral surfaces, and the overflow mill’s ability to control fineness precisely ensures the efficiency of the flotation process.​

In contrast, the grid-type ball mill’s "forced discharge" design revolutionizes its performance. The discharge grid plate at the end cover creates a height difference in pulp level from the feed end to the discharge end, allowing ground ore particles to be quickly discharged through the grid. This rapid discharge fundamentally solves the over-grinding problem—ore particles that meet the coarse grinding requirement (>0.2mm) are promptly removed, avoiding repeated grinding. At the same time, the grid plate blocks steel balls, enabling the mill to load more steel balls (including small balls). When these steel balls fall, the low pulp level reduces resistance, maximizing their impact force on coarse ore particles. As a result, the grid-type mill’s productivity is 10%-25% higher than that of the overflow type, and its specific productivity (output per unit power consumption) is also superior—an important advantage for concentrators pursuing high throughput.​

However, the forced discharge structure comes with trade-offs. The addition of radial ribs, dustpan-shaped lining plates, and grid plates makes the grid-type mill’s structure more complex, increasing its weight by 15%-20% compared to the overflow type of the same specification. This not only raises manufacturing costs but also increases power consumption during operation—since more energy is needed to drive the heavier equipment and overcome the resistance of the grid structure.​

In summary, the overflow ball mill excels in fine grinding with stable fineness and easy maintenance, while the grid-type mill leads in coarse grinding with high productivity and low over-grinding. Choosing between them requires aligning their performance traits with the concentrator’s specific grinding goals.

Structural Design of Ball Mills in Metal Concentrators: Unveiling the Secrets Behind Overflow and Grid-Type Models

​In the grinding process of metal concentrators, the structural design of ball mills directly determines their adaptability to different grinding tasks. Among the two core types—overflow ball mills and grid-type ball mills—each has a unique structural layout tailored to its functional positioning, from the thickness of the cylinder steel plate to the details of the discharge component.​

Starting with the overflow ball mill, its structure is a model of simplicity and practicality, consisting of six key parts: cylinder, end covers, main bearings, hollow journals, transmission gears, and ore feeders. The cylinder, the "core working chamber," is welded with 15-36mm thick steel plates—this thickness is not arbitrary. Thinner plates (15-20mm) are used for small-scale mills handling low-hardness ores, as they reduce equipment weight and energy consumption; thicker plates (25-36mm) are reserved for large-scale mills processing high-hardness minerals like iron ore, ensuring durability under long-term impact. Both ends of the cylinder are equipped with flanges that fit precisely with the end covers, minimizing pulp leakage during operation—a detail that directly affects grinding efficiency and environmental cleanliness.​

The hollow journals, which connect the end covers and support the entire mill, are another structural highlight. The journal near the transmission gear ring is fixed with a shoulder, while the other can expand and contract freely. This "fixed + flexible" design addresses a common problem in mill operation: when the cylinder heats up due to friction during grinding or bears uneven loads, the free journal can adjust its position to avoid structural deformation. Additionally, the inner diameter of the discharge-end hollow journal is slightly larger than that of the feed end, and some models are equipped with reverse spiral blades. These blades act as a "filter": they prevent unground coarse-grained materials from being discharged prematurely and stop small steel balls (critical for fine grinding) from being lost with the pulp, ensuring the mill maintains stable grinding performance.​

The grid-type ball mill shares most structural components with the overflow type but differs significantly in the discharge end—its "secret weapon" is the added discharge grid plate. The end cover is divided into eight fan-shaped chambers by radial ribs, each fitted with a dustpan-shaped lining plate. On these lining plates, two groups of grid lining plates are fixed with wedge irons, forming a forced discharge structure. The dustpan-shaped lining plate guides the pulp to the grid plate, while the wedge iron fixation ensures the grid plate withstands the impact of steel balls and pulp without loosening. This structural upgrade transforms the discharge method from "free flow" to "forced discharge," making the grid-type mill uniquely suited for coarse grinding tasks.​

From the thickness of the cylinder to the design of the discharge grid, every structural detail of these two ball mills is a result of matching specific grinding needs. Understanding these structural differences is the first step in selecting the right equipment for a concentrator.

Optimizing Process Performance with Deep Cone Thickeners

 In today’s industrial landscape, efficiency and sustainability are not optional—they are essential. As industries face rising operational costs, stricter environmental regulations, and increasing water scarcity, the demand for more effective solid-liquid separation solutions is higher than ever. This is where deep cone thickeners come in.

Deep cone thickeners combine innovative design with reliable operation, making them a cornerstone technology for industries that rely on efficient dewatering. This article will explore not only how deep cone thickeners work, but also how to optimize their performance for maximum benefit.

---

The Science Behind Deep Cone Thickeners

The principle behind deep cone thickeners is simple yet powerful: leverage gravity-driven sedimentation and compression to separate solids from liquids. The cone-shaped design creates a natural compression zone where solids accumulate and compact under their own weight. The deeper the bed, the more pressure is applied, resulting in higher solids content in the underflow.

This process reduces the amount of water entrained in the slurry, lowers the volume of tailings, and allows for more efficient water recycling—a crucial advantage in water-scarce regions.

---

Factors Affecting Performance

To achieve optimal results, several factors must be carefully controlled:

• Feed Density: A higher feed solids concentration generally leads to better thickener performance. However, excessively high feed density can cause poor mixing and hinder settling.

• Flocculation: The use of flocculants can significantly enhance particle settling by forming larger aggregates. Choosing the right flocculant type and dosage is key.

• Rake Torque and Speed: The rake system must be adjusted to maintain steady movement of solids without disturbing the sediment bed.

• Underflow Pumping Rate: Balancing the withdrawal of thickened slurry is essential to avoid excessive bed buildup or over-dilution of underflow.

• pH and Chemistry: The chemical composition of the slurry can affect settling behavior. Adjusting pH or adding coagulants may improve performance.

---

Operational Advantages

Deep cone thickeners offer several operational advantages over conventional thickening equipment:

• Higher Solids Concentration: The underflow produced can approach paste-like consistency, reducing water loss to tailings.

• Lower Operating Costs: By reducing the volume of water that needs to be pumped or treated, energy consumption is minimized.

• Environmental Compliance: Improved water recovery supports regulatory compliance by minimizing the size of tailings storage facilities.

• Reduced Footprint: Their compact design means they can be installed even in space-constrained plants.

---

Applications in Mining and Beyond

While deep cone thickeners are widely used in mining and mineral processing, their applications extend to many other industries:

• Coal Preparation Plants: Thickening fine coal tailings before disposal.

• Power Plants: Managing flue gas desulfurization (FGD) waste streams.

• Pulp and Paper Industry: Recovering fibers and clarifying process water.

• Food and Beverage Industry: Clarifying wastewater and recovering valuable by-products.

---

Best Practices for Optimization

For facilities looking to maximize the value of their deep cone thickeners, here are some best practices:

1. Regular Monitoring: Track key parameters such as underflow density, rake torque, and overflow clarity.

2. Proper Flocculant Selection: Conduct lab-scale tests to determine the most effective flocculant type and dose.

3. Automated Control Systems: Modern deep cone thickeners can be equipped with advanced instrumentation for real-time process control.

4. Preventive Maintenance: Regular inspection of rake mechanisms, feedwells, and underflow pumps helps avoid downtime.

5. Operator Training: Ensuring operators understand the thickener’s working principle improves troubleshooting and performance tuning.

---

Conclusion

Deep cone thickeners are not just equipment—they are process optimization tools. By combining high-density underflow production with superior water recovery, they help industries meet their production goals while minimizing environmental impact. With proper design, operation, and optimization, deep cone thickeners can deliver consistent, reliable performance for years to come.

For organizations seeking to improve their solid-liquid separation processes, **investing in deep cone thickener technology is a smart and forward-looking ch

Understanding the Working Principle of Deep Cone Thickeners

 In industries where solid-liquid separation is a critical process, the choice of equipment can make the difference between efficiency and bottlenecks. Among the various solutions available, deep cone thickeners stand out for their ability to produce high-density underflow, recover large volumes of process water, and optimize plant performance. They are widely used in mining, mineral processing, chemical manufacturing, and wastewater treatment facilities.

This article explores the working principle of deep cone thickeners, breaking down their unique design features and explaining how they achieve efficient dewatering and separation. By understanding these principles, plant engineers and process operators can better appreciate the advantages of incorporating this technology into their operations.

---

What Is a Deep Cone Thickener?

A deep cone thickener is a type of gravity thickener designed to achieve very high levels of solids concentration in the underflow. Unlike conventional thickeners, which typically have a flat-bottomed tank, deep cone thickeners feature a steeply sloped, cone-shaped tank. This design creates a deep bed of solids in which compression and consolidation are maximized, resulting in a more concentrated slurry discharge.

The main purpose of a deep cone thickener is twofold:

1. Separate solids from liquids efficiently, producing a clarified overflow.

2. Generate a dense underflow, which reduces downstream handling and improves overall process water recovery.

---

Key Design Features

The efficiency of deep cone thickeners can be attributed to several unique design elements:

• Cone-Shaped Tank – The cone’s geometry promotes better settling by increasing the depth of the sediment bed. The deep bed exerts a compressive force on the solids at the bottom, squeezing out water and producing a dense underflow.

• Central Feed Inlet – The slurry enters through a feedwell or central inlet, which helps dissipate kinetic energy and ensures uniform distribution within the thickener.

• Internal Rake Mechanism – A slowly rotating rake system moves settled solids toward the discharge point. This prevents wall buildup, maintains steady flow, and helps control underflow density.

• Overflow Launder – Located at the top perimeter of the tank, the launder collects clarified liquid, which is typically suitable for reuse or discharge.

---

Working Principle: Step by Step

The operation of a deep cone thickener can be broken down into several stages:

1. Slurry Feeding: The feed slurry, containing a mixture of solids and water, enters the thickener through a central feed inlet. This ensures the slurry is evenly distributed, avoiding turbulence that might resuspend settled solids.

2. Sedimentation: Under the influence of gravity, denser solid particles begin to settle towards the bottom of the cone. This settling forms a thick bed of solids, often referred to as a sludge blanket.

3. Compression and Consolidation: As more solids settle, they exert pressure on the layers below, compacting them further and squeezing out interstitial water. This process is key to achieving the high-density underflow that deep cone thickeners are known for.

4. Rake Action: The internal rake system moves through the thickened bed, gently pushing the solids toward the central underflow discharge. The speed of the rakes can be adjusted to control the density of the discharged slurry.

5. Underflow Discharge: The concentrated slurry, or underflow, is withdrawn from the bottom of the thickener. Because of the deep cone design, the underflow contains a much higher percentage of solids compared to conventional thickeners.

6. Overflow Collection: Simultaneously, clarified water rises to the surface and flows into the overflow launder, leaving the tank relatively free of suspended particles.

---

Benefits of Using Deep Cone Thickeners

The unique design and operation of deep cone thickeners provide numerous advantages:

• High-Density Underflow: Achieves a much higher solids concentration, reducing the volume of material that needs to be pumped or transported.

• Improved Water Recovery: Maximizes the return of clarified process water, lowering fresh water consumption.

• Space Efficiency: The vertical design allows for a smaller footprint, which is advantageous for facilities with space constraints.

• Operational Stability: The deep sludge bed acts as a buffer, reducing short-term fluctuations in feed characteristics and improving process consistency.

• Reduced Tailings Storage Costs: By producing a denser underflow, less water is sent to tailings dams, which enhances safety and environmental compliance.

---

Industrial Applications

Deep cone thickeners are used in a wide variety of applications, including:

• Mining and Mineral Processing: Concentrating tailings and recovering water for reuse in flotation circuits.

• Wastewater Treatment: Thickening biological sludge or industrial effluents before further treatment or disposal.

• Chemical Processing: Recovering valuable solids from process streams and clarifying process liquids.

• Metallurgical Plants: Managing by-products and reducing the environmental impact of waste disposal.

---

Conclusion

Deep cone thickeners are more than just an evolution of traditional thickeners—they represent a significant leap in solid-liquid separation technology. Their ability to produce a dense underflow, recover high-quality overflow, and operate reliably under varying feed conditions makes them indispensable in modern industrial operations.

For operations seeking to optimize performance, reduce environmental impact, and improve water management, deep cone thickeners offer a proven, cost-effective solution.

Chromium Alloys and Their Critical Role in Aerospace, Defense, and Transportation

 Chromium is one of the most strategic metals in modern industry. Its alloys are essential in building machines and infrastructure that must withstand extreme conditions – from rocket engines to armored vehicles. Derived primarily from chromite ore, metallic chromium is used to produce high-performance alloys that power aviation, aerospace, automotive, naval, and defense applications worldwide.

The Science Behind Chromium Alloys

Metallic chromium is produced through a process known as aluminothermic reduction or electrolytic reduction of chromium oxide. The resulting metal is then alloyed with elements such as nickel, cobalt, and tungsten to create materials with outstanding mechanical and chemical properties. These alloys are valued for:

• High-temperature strength: Ability to maintain performance under extreme heat.

• Corrosion and oxidation resistance: Protection from harsh environments, including saltwater and combustion gases.

• Wear resistance: Essential for components exposed to friction and impact.

• Hardness and durability: Crucial for military-grade and aerospace parts.

These properties make chromium alloys indispensable in situations where material failure is not an option.

Chromium in Aviation and Aerospace

Aerospace is one of the largest consumers of high-performance chromium alloys. Jet engines, turbine blades, and exhaust systems often rely on nickel-chromium or cobalt-chromium superalloys capable of operating at temperatures over 1,000°C. Chromium provides the protective oxide layer that prevents catastrophic oxidation at high speeds and altitudes.

Rocketry also depends on chromium-rich alloys. The combustion chambers and nozzles of rockets must endure intense thermal stress and pressure. High-strength chromium alloys ensure structural integrity during launch and re-entry. Even spacecraft components, such as heat shields and re-entry vehicle casings, benefit from chromium’s ability to resist heat and oxidation.

Role in Defense and National Security

Chromium alloys are strategically significant for defense manufacturing. They are used to produce:

• Armored vehicle plating for tanks and personnel carriers.

• Naval ship hulls with superior resistance to saltwater corrosion.

• Missile casings and rocket motor housings requiring high strength-to-weight ratios.

• Firearm components such as barrels, breech blocks, and gas systems.

The durability of chromium alloys reduces maintenance cycles and enhances reliability – critical advantages in military operations. Many nations classify chromium as a strategic resource because secure access is essential for defense readiness.

Chromium in Automotive and Transportation

The automotive industry also benefits from chromium alloy technology. High-strength steels and superalloys are used in:

• Engine valves and manifolds that face hot exhaust gases.

• Turbocharger components where heat resistance is vital.

• Drivetrain parts that must resist wear.

• Exhaust systems where corrosion resistance extends service life.

Beyond cars, chromium alloys are widely used in locomotives, high-speed trains, and heavy-duty trucks. Ships and submarines depend on chromium steels to resist seawater corrosion, ensuring long-term structural integrity.

Emerging Technologies and Future Trends

The demand for chromium alloys is expected to grow as industries push for higher efficiency and performance. Some emerging areas include:

• Additive manufacturing (3D printing): Development of chromium-based superalloy powders for aerospace and defense applications.

• Lightweighting strategies: Using high-strength, corrosion-resistant alloys to reduce weight without compromising safety.

• Advanced energy systems: Chromium alloys in nuclear reactors, hydrogen storage, and renewable energy turbines.

As space exploration expands, the need for materials that can survive extreme environments will make chromium alloys even more important.

Strategic Importance and Supply Chain

Because of its critical applications, chromium is classified as a strategic mineral by many governments. Most of the world’s chromite deposits are concentrated in South Africa, Kazakhstan, India, and Turkey. Any disruption in the supply of chromite or ferrochrome could have a direct impact on defense and aerospace industries. This is why recycling and resource diversification are becoming priorities for manufacturers.

Conclusion

Chromium alloys are not just another category of materials – they are the unsung heroes of modern engineering. From jet engines roaring at 30,000 feet to armored vehicles rolling through rugged terrain, chromium enables performance, safety, and innovation. As industries evolve toward more demanding environments – from space exploration to hypersonic flight – chromium’s strategic value will only grow. Ensuring a stable supply of chromite and investing in advanced alloy technologies will remain essential for the future of aerospace, defense, and transportation.

Chromite in the Metallurgical Industry – The Backbone of Stainless Steel Production

 Chromite, the only commercially significant ore of chromium, is a mineral that plays an indispensable role in the metallurgical industry. Its importance goes far beyond the mining sites where it is extracted. Chromite is transformed into ferrochrome and metallic chromium, which are key ingredients for producing stainless steel, special alloys, and other critical materials that form the backbone of modern infrastructure and technology.

Understanding Chromite and Ferrochrome

Chromite (FeCr₂O₄) is a naturally occurring mineral rich in chromium oxide. The majority of chromite mined worldwide is used to produce ferrochrome – an alloy of chromium and iron – through a high-temperature smelting process in submerged arc furnaces. Ferrochrome is then used as a master alloy in steelmaking, serving as the main source of chromium when manufacturing stainless steels and other alloy steels.

This is significant because stainless steel is not merely a convenience material; it is a critical industrial necessity. Stainless steel contains 10–20% chromium, which forms a passive layer of chromium oxide on the surface, giving the metal its corrosion-resistant properties. Without chromite, the stainless steel industry – and by extension many sectors of modern life – would be severely limited.

Why Chromite is Called the “King of Stainless Steel”

Approximately 85% of the world’s chromite production is consumed by the stainless steel industry. This overwhelming percentage has earned chromite the title of “King of Stainless Steel.” The chromium content in stainless steel is what differentiates it from ordinary carbon steel. By adding ferrochrome to molten steel, metallurgists can create grades of stainless steel with superior properties, including:

• Corrosion resistance: Protects against rust and chemical attack.

• Heat resistance: Enables use in high-temperature environments such as furnaces and engines.

• Wear resistance: Ideal for machinery, tools, and components under constant friction.

• Strength and toughness: Provides durability for load-bearing and structural applications.

The result is a material that can be used in a diverse range of applications: kitchenware, medical instruments, skyscraper cladding, pipelines, nuclear reactors, and even surgical implants.

Types of Chromium-Alloyed Steels

Chromium’s versatility allows steelmakers to produce different steel grades for specialized needs. Some examples include:

• Stainless steel: Contains at least 10.5% chromium. Used in everything from household appliances to chemical processing equipment.

• Acid-resistant steel: Designed for use in corrosive chemical environments.

• Heat-resistant steel: Capable of withstanding extreme temperatures without losing strength.

• Ball-bearing steel: Provides hardness and fatigue resistance for bearings.

• Spring steel: Offers excellent elasticity and is used in suspension systems.

• Tool steel: Ideal for cutting tools, molds, and dies due to its hardness and wear resistance.

Each of these steels depends on ferrochrome additions derived from chromite, highlighting its critical role across multiple industries.

The Process: From Chromite to Stainless Steel

The journey of chromite from mine to finished stainless steel involves several key steps:

1. Mining and Beneficiation: Chromite ore is mined from open-pit or underground mines, then crushed, screened, and concentrated to remove waste material.

2. Ferrochrome Production: The concentrated ore is mixed with coke and fluxes and smelted in electric furnaces at temperatures exceeding 1,600°C. This process reduces chromium oxide to produce ferrochrome.

3. Steelmaking: Ferrochrome is added to molten iron in basic oxygen furnaces or electric arc furnaces to produce stainless steel.

4. Casting and Fabrication: The molten stainless steel is cast into slabs or billets and rolled into sheets, rods, or other shapes depending on its intended application.

Chromite and the Global Stainless Steel Market

Stainless steel production continues to grow worldwide, driven by demand from construction, automotive, energy, and household appliance sectors. Countries like China, India, and South Africa are among the largest producers of chromite and ferrochrome, making them strategically important players in the global supply chain.

Market analysts predict that stainless steel demand will continue to increase in the coming decades, which means a steady demand for chromite. Recycling of stainless steel is also becoming a key part of the circular economy, helping to conserve primary chromite resources while meeting industry needs.

Environmental and Sustainability Considerations

The mining and smelting of chromite can have environmental impacts, including energy consumption, emissions, and waste generation. The industry is working toward improving energy efficiency, developing closed-loop systems for waste recycling, and using more sustainable mining practices. Ferrochrome producers are also adopting pre-reduction technologies and renewable energy sources to lower the carbon footprint of stainless steel production.

Everyday Applications: Chromite in Your Life

Although we rarely think about where materials come from, chromite-derived stainless steel surrounds us daily:

• The cutlery and cookware in your kitchen

• The elevators and escalators in shopping malls

• The exhaust systems in cars

• The pipelines carrying water and natural gas

• The surgical tools in hospitals

Each of these products owes its performance and durability to the chromium that originated from chromite ore.

Conclusion

Chromite’s role in the metallurgical industry cannot be overstated. It is the mineral that makes modern stainless steel possible, enabling the creation of high-performance materials that are strong, durable, and resistant to corrosion. From skyscrapers to surgical scalpels, chromite touches almost every aspect of our lives. Its title as the “King of Stainless Steel” is well deserved, and as global infrastructure and technology continue to advance, the importance of chromite will only grow.

We warmly welcome global buyers to visit Luyu Heavy Industry

 Recently, an international grand event — the Yantai Precision Procurement Matchmaking Conference — kicked off. This event not only attracted professional buyers from multiple countries around the world, but also became an important platform for Shandong to showcase its industrial strength and expand into the global market.Shandong Luyu Machinery Co., Ltd. presented a unique factory open day event, offering global partners a new calling card of “Shandong Intelligent Manufacturing.”

This event attracted a total of 54 overseas buyers from countries along the “Belt and Road,” including Pakistan, South Africa, Uzbekistan, Nigeria, Thailand, Colombia, and Egypt. Numerous cooperation intentions were reached, injecting new vitality into the further integration of “Shandong Manufacturing” into the global industrial chain and contributing to the steady growth and optimized structure of foreign trade.

Pushing open the doors of Luyu Heavy Industry's intelligent factory, what greets visitors is not the deafening roar of a traditional workshop, but a fusion of futuristic innovation and human warmth: sparks from laser cutting dance within transparent protective shields, robotic arms weld with the rhythm of a symphony, and on the digital display screens, global orders pulse in real time — seamlessly “translating” customer demands into every process along the production line.

From Luyu Heavy Industry’s intelligent factory to infrastructure sites across Africa, from sugarcane fields in Southeast Asia to mining areas in the Middle East, Luyu Heavy Industry is creating a new paradigm for Chinese construction machinery going global, powered by the dual strengths of “cutting-edge technology + flexible service.” This factory open day is not only a showcase of industrial strength, but also an invitation to the world. Luyu Heavy Industry looks forward to joining hands with global partners to build a new future for the industry together!

Luyu Municipal Infrastructure Wheeled Excavator

 In medium-scale projects such as municipal road construction, rural infrastructure, and loading and unloading in logistics parks, the mobility, operating efficiency, and durability of wheel excavators directly impact construction progress and operating costs. LUYU wheel excavators, with their targeted technical design, precisely address these core challenges, making them the preferred choice for many users. Based on actual jobsite requirements, let's break down its four key advantages and see how it helps projects improve efficiency and reduce costs.

1. Rapid Mobility & Strong Off-Road Performance
LUYU wheel excavators are equipped with imported drive axles and transmissions. With a powerful full-time four-wheel drive system, they can cross ditches and uneven terrain without damaging the undercarriage. Even on rugged jobsite roads, they maintain stable travel, preventing delays caused by poor ground conditions—making them a true off-road powerhouse.

2. High-Efficiency Power & Intelligent Fuel Control
In terms of power, LUYU wheel excavators are equipped with engines from leading brands such as Kubota and Cummins, delivering abundant power reserves and strong performance. Paired with LUYU's self-developed optimized bucket, they can load a truck within just a few minutes. On fuel efficiency, the electronically controlled positive flow system allocates power on demand, saving a significant amount of fuel costs over the course of a year and greatly reducing overall operating expenses.

3. Wear-Resistant Structure & Detail Protection
The "durability" of a wheel excavator directly affects long-term operating costs. LUYU wheel excavators feature reinforced designs on easily worn components and key structures. The bucket adopts a "double-arc optimized" profile, while the front cutting edge uses LUYU's unique "flanged structure," significantly enhancing reliability. In addition, new dust-proof seals and honeycomb high-load wear-resistant bushings provide meticulous protection, ensuring long service life with minimal maintenance.

4. Comfortable Operation & User-Friendly Design
The real-time display shows fuel consumption and operating status, with a rear-view camera for safer maneuvering. A one-touch start system and optimized control panel make it easy for new operators to get started. The upgraded air-conditioning ducts increase airflow by 30%, cooling the cabin within 10 minutes. Shock-absorbing seats reduce vibration by 30%, allowing operators to work continuously for 8 hours without back strain. No downtime between shifts, ensuring long hours of operation without fatigue.

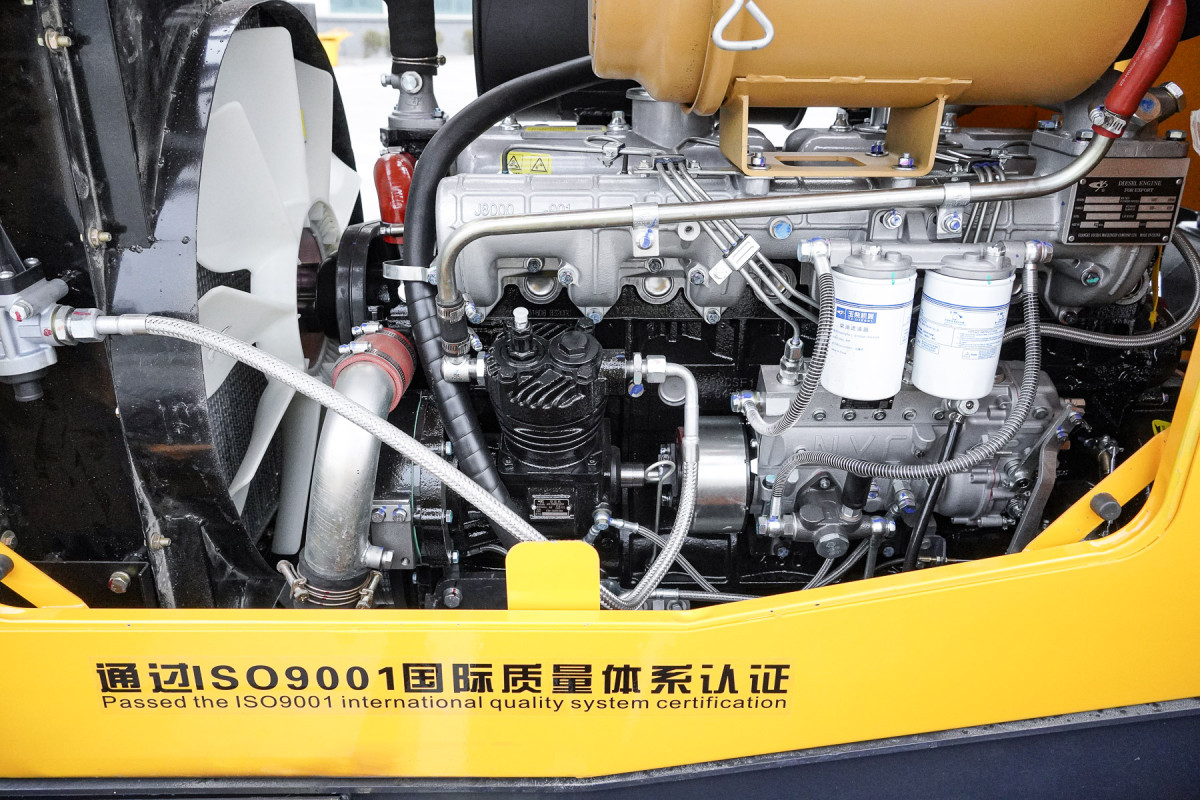

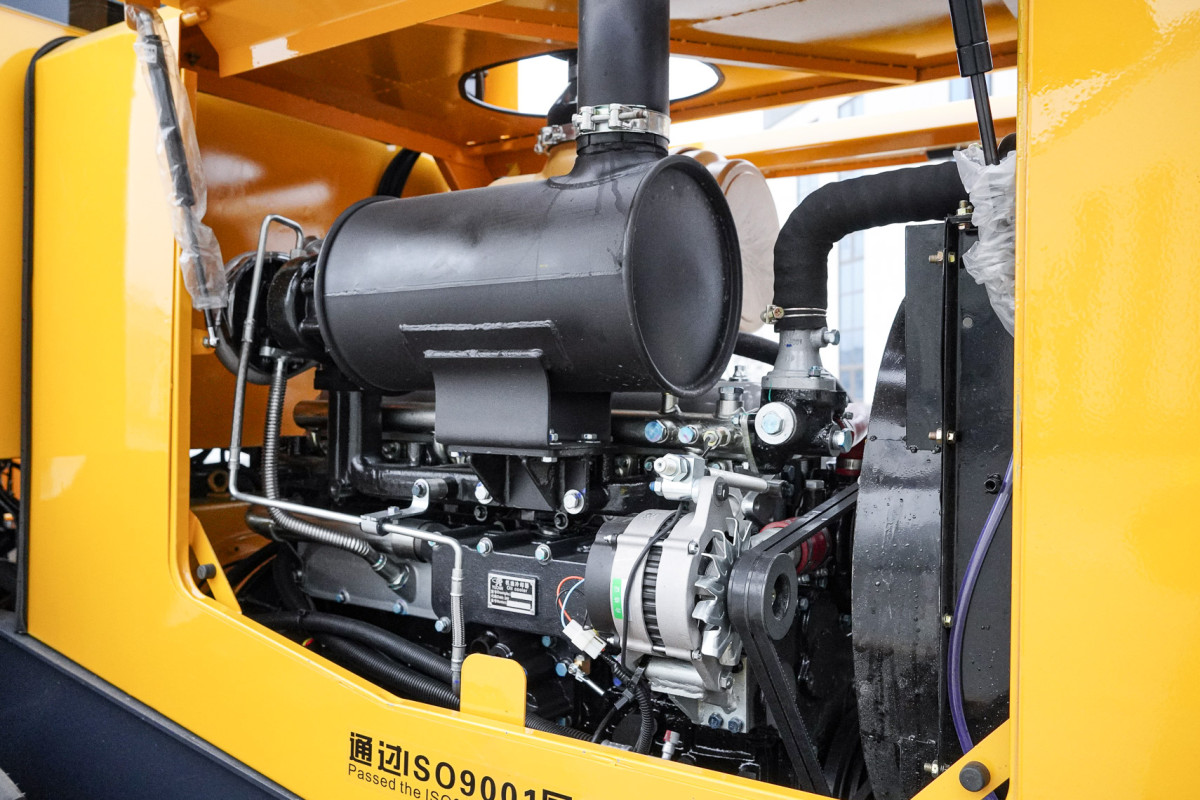

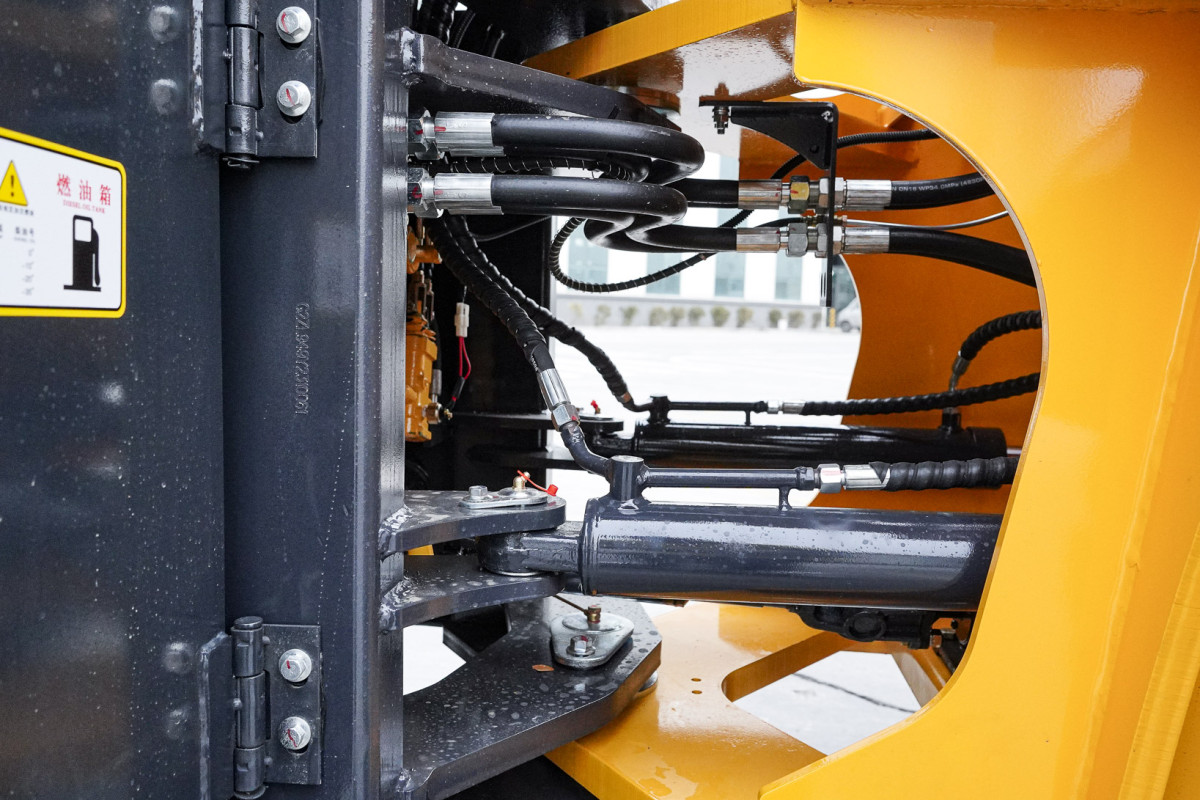

Learn About Your Wheel Loader Getting Started Guide

 The  use  of  new  wheel loader must  be  advanced  walking,  starting  from  idling,  gradually increase the load, the purpose is to make the friction parts for full running-in, in order to extend the service life of the machine.The total walking time of the new wheel loader is 60 hours. During the walking time, comply with the following regulations:

After starting the engine, run it in low speed and neutral for 5 minutes to make the engine  fully  preheat.You  cannot  suddenly  accelerate  the  engine  during  the warm-up  phase.

Empty loader running,  each  gear  respectively  from  low  speed  to  high  speed,  driving should  be smooth left,  right steering and  braking.During walking, forward gear,  back gear, each gear should be evenly arranged walking.

During the period of loading loose materials is appropriate, the operation shall not be too   fierce   too   urgent.The   loading   weight   shall   not   exceed   70%   of  the   rated weight.Driving speed shall not exceed 70% of the maximum speed.

Pay attention to the lubrication condition of the machine, replace or add lubricating oil according to the specified time.

Attention must be paid to the temperature of the gearbox, torque converter, front and rear axles, hub and brake drum.  If there is overheating, the reason should be found out to eliminate it.

The following work should be carried out after the new car closes for 10 hours and the end of the closing period:

(1) Check the fastening of bolts and nuts of all parts.Especially diesel engine cylinder head bolts, exhaust pipe bolts, front and rear axle fixing bolts, hub nuts, drive shaft connecting  bolts, etc.

(2) Clean rough and fine oil filters and fuel oil filters.

(3) Check the tightness of fan belt, generator belt and air conditioner compressor belt.

(4) Check the electro-hydraulic specific gravity and storage of the battery, and tighten the battery connector.

(5) Check the transmission oil

(6) Check the tightness of hydraulic system and brake system.

(7) Check the connection and flexibility of each control handle.

(8) Check the temperature and connection of the components of the electrical system, the power supply status of the generator, the instrument, the light and the steering signal and other working conditions.

(9) Open the water discharge valve at the bottom of the gas tank to discharge water.

(10) Attending cleaning of transmission oil sump filter screen and torque converter oil filter  element.Check  e  the  filter  element  of  the  oil  return  filter  of  the  hydraulic tank.Change the engine oil.

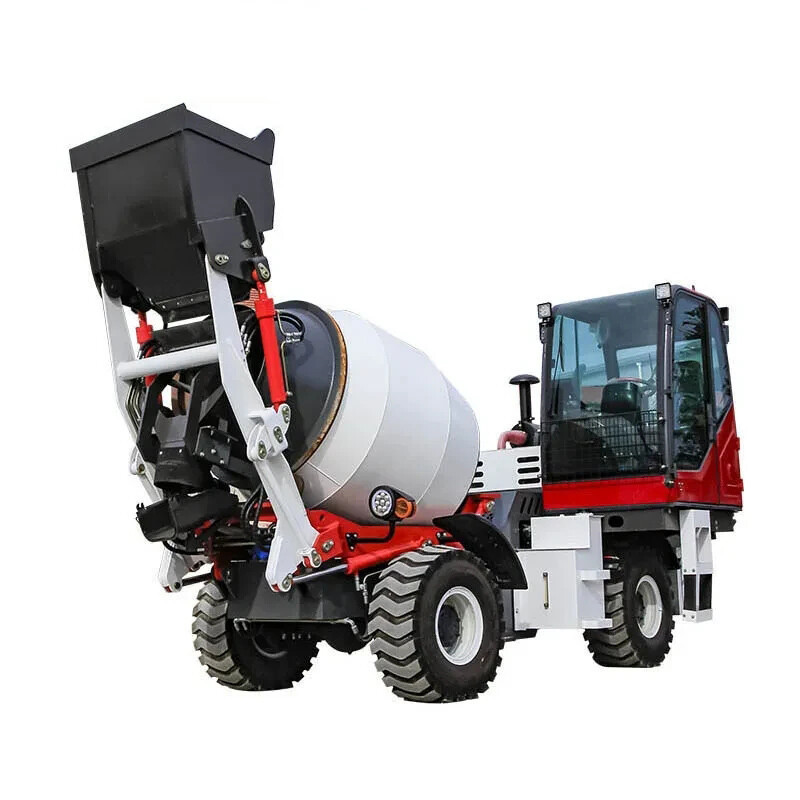

Self Loading Concrete Mixer Noted Items

 When Self Loading Concrete Mixer switching between the infeed and discharged states, the process from infeed to discharged needs to be operated under the engine idle speed, and must be stopped completely in the "neutral" position for a while, and then it can be dialed to the next operating position to avoid damage to the reducer.

Before discharging, in the case of engine idling, check whether the "infeed and discharged" gear lever is in the "outfeed" position. The throttle control handle can be raised appropriately to increase the engine speed and increase the speed of the mixing tank. Do not use the hand throttle when discharging during driving.

In the case of no retardant, the concrete enters the initial condensation state in about 1 hour, and then the concrete pouring construction will affect the amount of concrete. Therefore, the conveying radius of concrete transported by mixer truck is generally controlled within 1 hour. The maximum time from discharge to unloading is 90 minutes.

When the mixer truck is running, the "feeding and discharing" gear rod should be in the "feeding" state.

After the work is completed, the inside of the mixing tank should be cleaning in time. If it is not rinsed in time, it will cause the concrete in the mixing tank to bond, reduce the loading capacity, and the feeding is not smooth, please pay attention!

When the vehicle is deactivated in winter, drain all the remaining water in the water tank, pipeline and water gun to avoid freezing the components of the water supply system and causing unnecessary losses.

If the self-loading mixer truck is not used for a long time, it should be stored in a ventilated and moisture-proof garage, and should not be stored in the open. At the same time, the coolant and fuel should be drained and the power should be cut off. If it is stored in the open for a short time, it should be covered with canvas, especially the hopper and outlet. Avoid rainy days, rainwater entering the mixing tank can cause a lot of standing water, and the load on the tire when parked increased. Because the stirring tank, feed hopper, discharge tank and other components are vulnerable parts, long-term contact with sand and gravel, the surface of the steel plate will rust after deactivation, and paint surface spraying is also required.

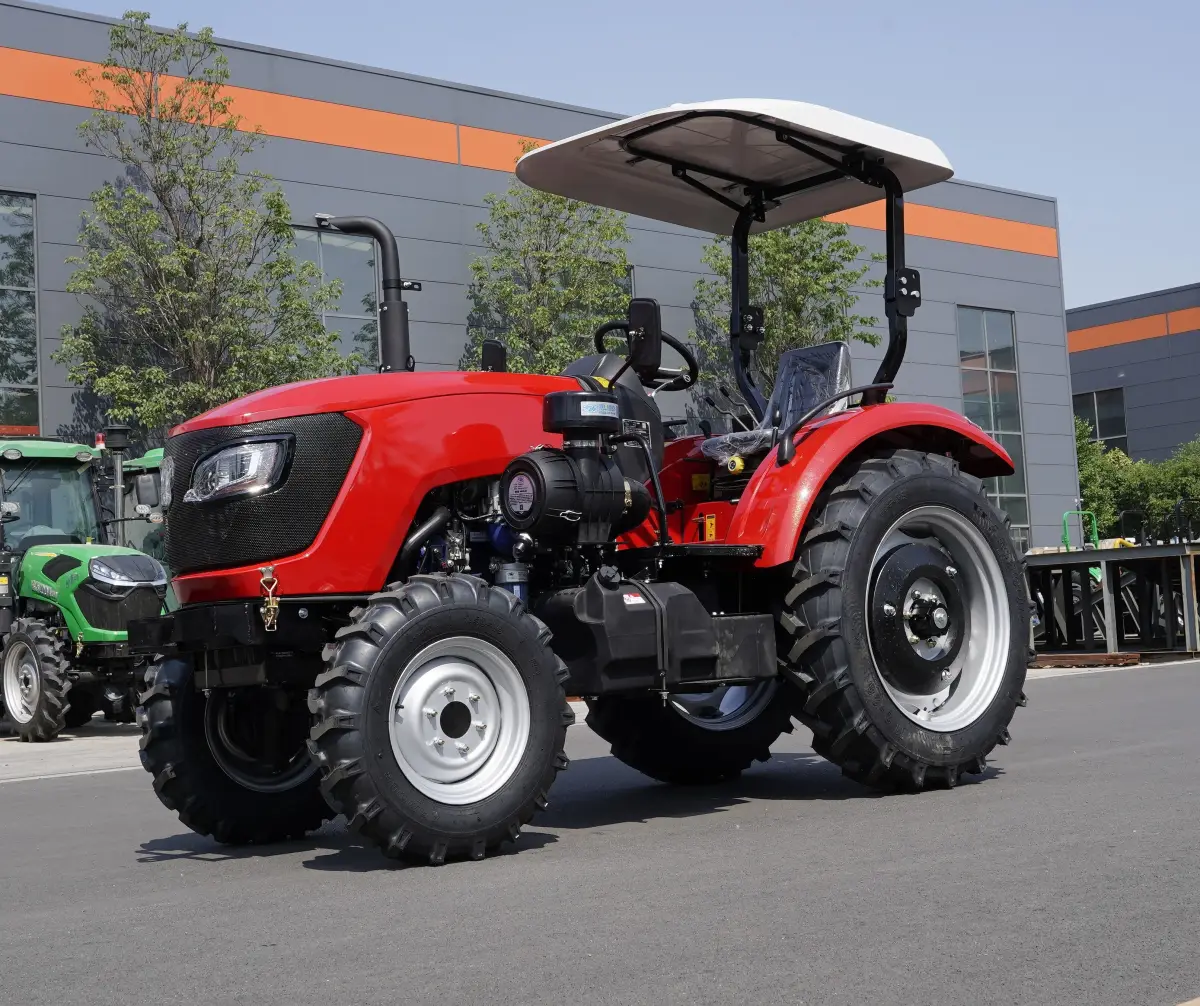

Where does the ease of tractor operation come into play?

 Modern customers increasingly prefer one-touch controls, automatic transmissions, and electronic hydraulic systems, which enable operators to get up to speed faster and boost operational efficiency. LuYu Tractors employs an ergonomic layout in the cab, placing all frequently used control levers and switches within easy reach.

Tractors Operational Convenience & User Focus:

Hydraulic Auxiliary Tank :

Function: External reservoir mounted behind the cab.

Advantage: Simplifies hydraulic fluid top-ups and increases system capacity for demanding hydraulic implements.

Tractors Quick-Hitch System :

Function: Enables fast attachment/detachment of implements.

Advantage: Saves significant time and labor compared to manual three-point hitch connection. Includes a Swinging Drawbar for smoother implement turning.

Tractors Superior Chassis & Powertrain:

Frame: Cross-braced reinforcement throughout (TE, TB, TC, TF, TS frames) for exceptional rigidity and strength in all directions.

Axles: Front axle by Guhe; Rear axle features a central differential lock. Combined with the reinforced frame, delivers outstanding off-road capability and durability.

Tractors Counterweight Systems :

Front Weights: Prevents front-end lift when using heavy rear implements.

Rear Wheel Weights: Split disc design (like half of a barbell plates) mounted directly onto the wheel hubs. Ensures traction and stability.

Tractors Premium Options & Comfort Options:

Tractors Advanced Sealing & Materials:

Oil Seals: Dual NBR/FKM (Nitrile/Fluorocarbon) seals provide exceptional resistance across a wide temperature range (-40°C to +200°C), ensuring long life in harsh conditions.

Tractors Operator Environment & Connectivity:

Hydraulic/Electric Auto-Lift Hitch: Automated implement control.

360° Camera System: Enhanced visibility and safety.

Tractor-Trailer Plug : Standard power outlet for lighting/electrical needs on towed equipment or trailers.

External Hydraulic Control Lever : Key Advantage: Allows single-operator implement hook-up from outside the tractor. Competitors often require one person outside and another inside the cab to operate controls.

Cab Comfort: Features sound insulation, tinted glass, and premium options including Grammer or high-quality Grammer-style suspension seats.

Tractors Key Selling Points Emphasized:

Enhanced Productivity: Forced-Lift, Dual-Clutch, Versatile PTO, Quick-Hitch, Multi-Hydraulics.

Superior Durability: Reinforced Chassis, Central Diff Lock, High-Temp Seals, Robust Brakes (Wet Disc/Air-Over-Hydraulic).

Operator Convenience & Safety: External Hydraulic Control (Single Operator Hook-up), Quick-Hitch, 360 Camera, Comfort Cab, Tractor-Trailer Plug.

Precision & Flexibility: Adjustable Track Width (Stepped & Continuous), Counterweight Systems, Tire Options.

Reliable Performance: Axles (Guhe), Auxiliary Hydraulic Tank.
